High End Aluminium Glass Window Sill Horizontal Vertical Opening Pattern
1, It can be used to open, open and open internal, etc.
2, The non-broken bridge profile can achieve the effect of double color in and out of the bridge profile, greatly reducing the cost of profiles and high cost performance.
2, Gold standard, silver hand and hidden hinge, and high load bearing of European groove, etc.
3, Indoor and outdoor design concept of glass, fixed large pressure line indoor installation of the atmosphere;
4, Open fan and fixed fan to unite the glass slot, can install the protection frame, manual louver and hollow decoration, etc.
5, Applicable scope: suitable for middle and high grade villa, residential and middle - grade office decoration, etc.
Material specifications:
<
| Profile |
1.High quality aluminum alloy profiles, thickness 1.2 mm |
| 2.Excellent quality thermal break aluminum alloy profiles, thickness 1.4-2.2mm |
| 3.PVC/UPVC profiles, thickness 2.3-2.5mm |
| Glass |
1.Single tempered glass: 5mm,6mm,8mm,10mm,12mm |
| 2.Double tempered glass: 5/6+12A+5/6mm, 5/6+22A+5/6mm, |
| 3.Triple tempered glass: 5+12A+5+12A+5mm |
| 4.Special: Laminated glass, Low-E glass , Coated glass, Frosted glass etc. |
| Hardware |
German brand ROTO or Chinese top brand HOPO etc depends on customers' choice |
| Screen |
1. 304 Stainless steel security mesh |
| 2. Fiberglass flyscreen |
| Finish |
1. Powder coating |
| 2. Electrophoresis |
| 3. Wood grain color |
| 4. Fluorine carbon coating |
| Colors |
White/ Sliver / Grey / Champagne / Coffee/ Wood grain etc can be chosen from our color list, special color can also be ordered |
| Open Style |
Casement, Sliding,Folding, Fixed,Swing, Awning, Tilt and turn etc |
| Standard |
Comply with AS2047&AS2208 |
Main Features
1) Strong plasticity
Aluminum alloy doors and windows are metal materials, aluminum and various metal elements cast into a variety of alloys, with other doors and windows have unparalleled advantages, light weight and high strength, can be extruded into a variety of complex cross-section profiles, can be Satisfy the door and window designer's various new section material requirements.
2) Good sealing performance
Confined performance directly affects the use of doors and windows and energy consumption. Sealing properties include watertightness, airtightness, heat insulation, sound insulation and other four aspects.
3) Long service life
Due to its light weight, high density, precision processing, assembly, and precision, aluminum alloy doors and windows can be opened and closed lightly and flexibly, without noise, easy to use and maintain, corrosion resistance, small deformation, strong fire resistance, and long service life (50-100 years).
4) Environmental Protection and Energy Saving
The new material H-UPVC can be used to form a partition space between the internal and external profiles, so that the heat conduction of the aluminum alloy is minimized, the heat insulation and the sound insulation effect are good.
5) Excellent weather resistance
Anti-acid and alkali corrosion and free from air pollution. Acid rain. Ozone attack, UV-resistant, long-term to maintain the inherent color and luster.

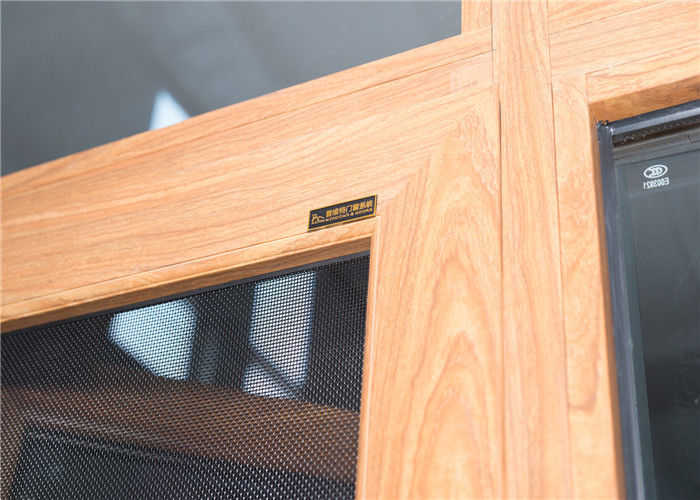

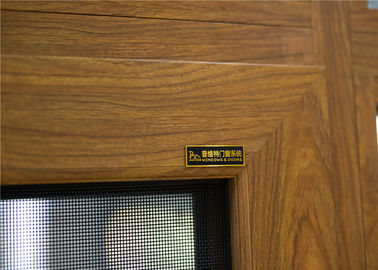

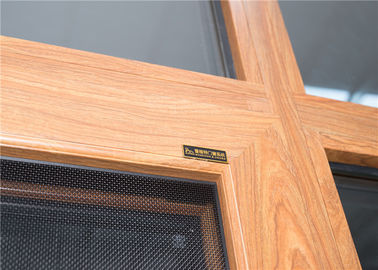

6) Elegant decorative effect
The paint finish uses a powder coating process and a woodgrain thermal transfer film. Powder coating is a high-grade spraying process, with excellent resistance to fading, anti-blooming, anti-oxygen pollution, acid rain and other aggressive, anti-ultraviolet ability, and can withstand harsh weather conditions. Using the thermal transfer technology, the wood grain is transferred to the surface of the metal plate to form a realistic wood grain on the surface of the product. The substrate does not need to be glued, and the plate does not need any treatment after the transfer.
